Crust/Lithosphere model of South America

1. S-velocity 3D model of the South America

The 3-D S-wave velocity model for the upper mantle beneath South America (SA2007-S) is inverted simultaneously from regional S and Rayleigh waveforms and fundamental mode Rayleigh wave group velocities [Feng et al., 2007]. The model can be downloaded at:
  • Compressed xyzv (lon, lat, depth, Vs) file: [download].

Two horizontal slices in Fig. 1 (below) are the same as Figure 10 of Feng et al. [2007].

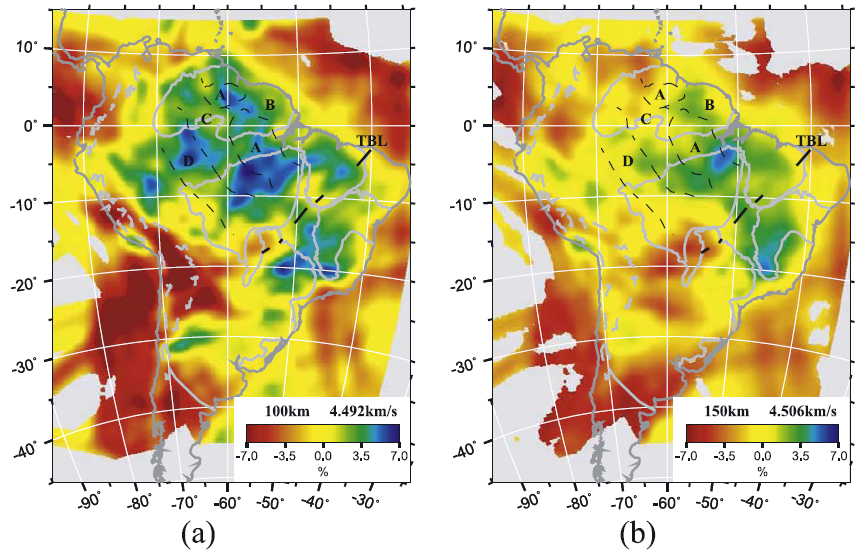

Figure 1. S-velocity maps at depths of (a) 100 km and (b) 150 km. The figure is the same as Figure 10 of Feng et al. [2007].


[go to top]

References

Mei Feng, Suzan van der Lee, Marcelo Assumpção, 2007, Upper mantle structure of South America from joint inversion of waveforms and fundamental-mode group velocities of Rayleigh waves. J. Geophys. Res., 112, B04312, doi:10.1029/2006JB004449. [Full text]
